Single Pilot Operated Check Valves

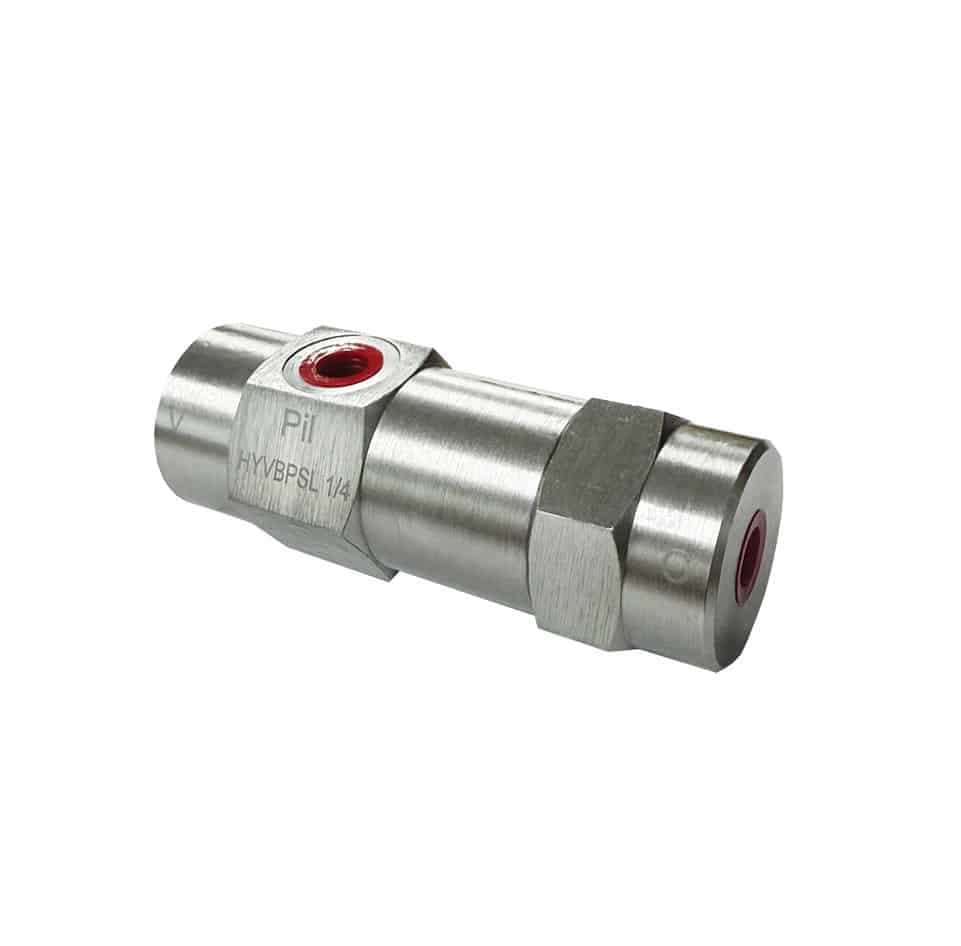

Single Pilot Operated Check Valves, 3 Way, In Line

Use/Operation:

• These valves are used to block the cylinder in one direction. The flow is free in one direction and blocked in the reverse direction until pilot pressure is applied.
• Connect V Port to the pressure flow, C Port to the actuator side you want the flow to be blocked, and PIL Port to the pilot line.

Please see the datasheet below for further information on the HYVBPSL Pilot Operated Check Valves

HYVBPSL Datasheet
