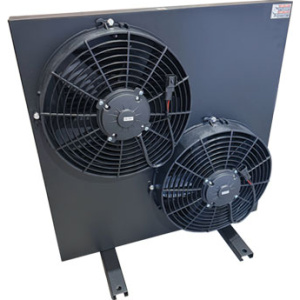

Hydraulic Oil Coolers
Price range: $889.00 through $2,131.00
The OAC Hydraulic Oil Coolers reduce excess heat and maintain optimal working temperatures. A temperature sensor switch starts the fan when the oil in the system reaches a specific temperature. Oil Coolers will improve the reliability of key components in your Hydraulic System.
With a bar and plate brazed aluminium core, the OAC Oil Coolers are rugged, lightweight and compact with the best heat transfer per given size. They have a quiet fan and fan motor.
Maximum Working Pressure: 250psi/ 16Bar
Maximum Working Temperature: 250?F/120?C
1/2″ BSPP Sensor Port
?OAC DatasheetOAC10A-DC12V, OAC10A-DC24V, OAC10A-AC220V, OAC10A-AC415V
OAC16A-DC12V, OAC16A-DC24V, OAC16A-AC220V, OAC16A-AC415V
OAC20A-DC12V, OAC20A-DC24V, OAC20A-AC220V, OAC20A-AC415V
OAC30A-DC12V, OAC30A-DC24V, OAC30A-AC220V, OAC30A-AC415V
| Flow, Ports | 80LPM, 3/4″ BSPP, 120LPM, 1″ BSPP, 180LPM, 1 1/4″ BSPP, 300LPM, 1 1/4″ BSPP |
|---|---|
| Voltage | 12VDC, 24VDC, 220 VAC, 415 VAC |
